Description

  1. General The specifications are applicable to Lidinglong motor models 5140
  2. Operating condition
Item Specification Condition remark
2-1 Use voltage range 36~52V DC
2-2 Use temperature range -20 ~ +80°C No icing, no condensation, no moisture condensation, no chemical corrosion
2-3 Use humidity range 40% ~ 85%RH No moisture condensation, no chemical corrosion
  1. Measuring condition
Item Specification Condition remark
3-1 Temperature +5 ~ +35°C Tested at normal temperature and humidity, if there is any doubt about the results, the test data at 20 ± 3 °C shall prevail
3-2 Humidity (65±20%)RH
3-3 Test voltage 10V DC
3-4 Test drive board Skyrc motor tester Skyrc motor tester
3-5 Position Axial vertically downward

*All test data are measured by our test environment and test instruments. When the test environment and test instruments change, the test results will have certain deviations. When there is any disagreement, the test environment and test instruments of our company shall prevail.

4. Mechanical specification

Item Specification Condition remark

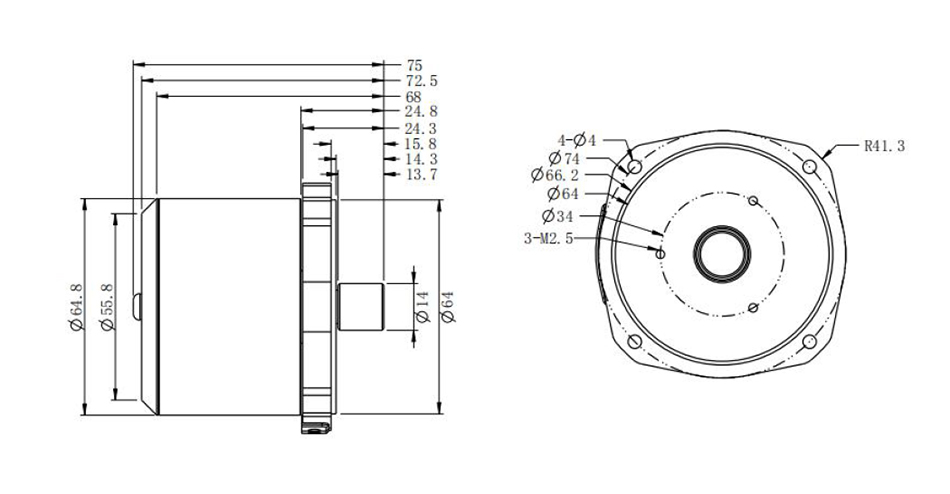

4-1 Dimensions Refer to the dimension drawing Please refer to the outline drawing of the motor for details.
4-2 Weight Subject to the real thing Only for products confirmed in this specification
4-3 Appearance and color Front, middle,and back black Visual inspection
4-4 Motor wire length Without a head 80mm Please refer to the outline drawing of the motor for details.
4-5 Motor shaft diameter length Gear out shaft Please refer to the outline drawing of the motor for details.
4-6 Motor mounting hole None



5. Performance and characteristic

Item Specification Condition remark
5-1 Stator and rotor structure 12N7P(Radial Magnetization)
5-2 Rated voltage 52V DC
5-3 KV value 146KV±5% Test under DC52V voltage, use a motor tester to test
5-4 No-load speed 7600±5%rpm Test under DC52V voltage, use a motor tester to test
5-5 No-load current 2.5A Max Test under DC52V voltage, use a motor tester to test



6. Precautions for use

6-1:The motor should be carefully and gently placed during transportation and handling to avoid damage to the motor body and performance caused by collision and knocking.

6-2: The motor should be stored at room temperature and humidity (25℃, 65%RH) in a ventilated environment to prevent moisture and chemical corrosion (Note: for more than 6 months, the internal spindle will oxidize and rust is normal.

It is normal to see rust stains on the internal spindle after 6 months, and it is still considered as a qualified product if it does not affect the performance)

6-3: Don’t block the shaft often after the power is connected. Welding should be done within 5 seconds to avoid damaging the terminals or wires.



7. Remarks

7-1:This specification is for engineering sample confirmation. Large-scale production will be performed according to this sample confirmation standard. After sample confirmation, please make sure to sign and return it.

7-2: If the sample is not signed and returned within 3 working days after the sample is confirmed, we will confirm the sample by default when we receive the order from the user.



8. Product packaging standards

8-1:Packing according to a layer of six motors, a cardboard box put two layers, two layers need to be staggered stacked, the first layer shaft facing up, the second layer shaft facing down, and the uppermost layer needs to pad a layer of cardboard.
