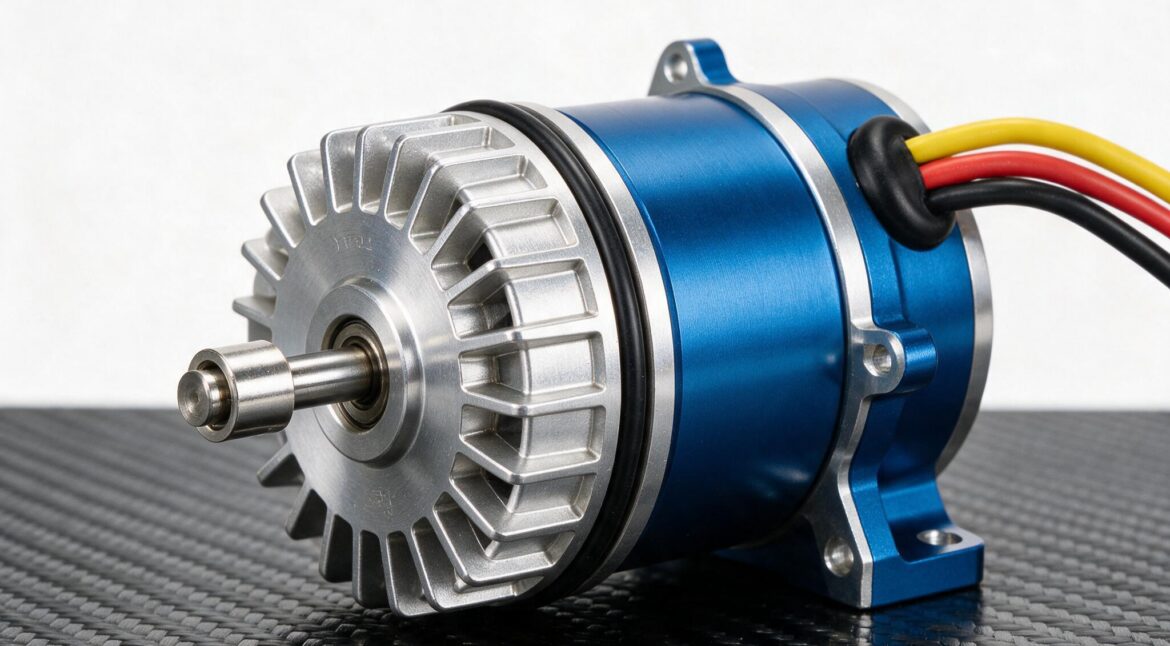

What Is the X-TEAM 4155 Waterproof Brushless Motor?
The X-TEAM 4155 is a high-performance waterproof brushless DC motor specifically engineered for underwater thruster applications in ROVs (Remotely Operated Vehicles), AUVs (Autonomous Underwater Vehicles), and marine robotics. With its IP68-rated sealed design and corrosion-resistant construction, the 4155 delivers reliable propulsion in the most demanding subsea environments.
Built on X-TEAM’s 15+ years of brushless motor manufacturing expertise, the 4155 series combines compact dimensions with exceptional power density — making it the go-to choice for underwater thrusters requiring dependable, maintenance-free operation at depth.
Key Specifications
| Parameter | Specification |
|---|---|
| Motor Type | Outrunner Brushless DC Motor (BLDC) |
| Stator Size | 4155 (41mm diameter, 55mm length class) |
| Waterproof Rating | IP68 — fully submersible |
| Construction | Anodized aluminum housing, stainless steel shaft & bearings |
| Winding Options | Custom KV values available (typical range 50–500KV for thruster use) |
| Voltage Range | 12V–48V (6S–12S LiPo compatible) |
| Max Continuous Power | Up to 800W (application-dependent) |
| Sealing Technology | Dual-lip mechanical seals + epoxy potted windings |
| Weight | Approx. 350g–450g |
Why the 4155 Excels in Underwater Propulsion
1. True IP68 Waterproof Design
Unlike conventional brushless motors that require external housing or pressurized enclosures, the 4155 features fully potted stator windings and dual-lip mechanical shaft seals. This means it operates reliably while fully submerged — no air-filled enclosures, no bellows, no complex sealing systems. Simply mount, connect, and dive.
2. Corrosion Resistance for Saltwater Operations
Every component of the 4155 — from its anodized aluminum shell to its AISI 316 stainless steel shaft and ceramic hybrid bearings — is selected for long-term saltwater exposure. This makes the motor ideal for oceanographic research, offshore inspection, and marine survey applications where equipment must endure weeks or months of continuous immersion.
3. High Efficiency at Low RPM
Underwater thrusters demand high torque at low speeds. The 4155’s outrunner design and optimized electromagnetic geometry deliver peak efficiency in the 400–2000 RPM range — exactly where most thruster propellers operate. Less wasted energy means longer mission durations and reduced battery weight for autonomous vehicles.
4. Compact Power Density
With a stator diameter of just 41mm and a total length of approximately 55mm, the 4155 packs serious thrust potential into a remarkably small package. This compact footprint enables slimmer thruster nacelle designs and more hydrodynamic vehicle profiles — critical for minimizing drag in underwater applications.
Primary Application Scenarios
ROV Thrusters (Inspection-Class)
Inspection-class ROVs used for dam survey, pipeline inspection, and hull cleaning rely on multiple thruster channels for precise maneuverability. The 4155’s smooth torque delivery and rapid response make it ideal for vectored thruster configurations requiring fine position control in strong currents.
AUV Propulsion Systems
Long-endurance autonomous underwater vehicles demand motors that combine efficiency with reliability. The 4155’s low current draw at cruise speeds — typically 2–5A at survey velocities — extends battery life significantly compared to less efficient propulsion alternatives.
Underwater Drones & Consumer Submersibles
The growing consumer underwater drone market — including fishing drones, underwater photography platforms, and recreational ROVs — benefits from the 4155’s plug-and-play integration. End users get professional-grade propulsion without the complexity of pressurized thruster units.
Marine Research Equipment
Water sampling systems, seabed crawlers, and oceanographic sensor platforms use the 4155 for both propulsion and auxiliary actuation. The motor’s ability to operate at extreme depths (tested to 300m+) makes it suitable for deep-sea research applications.
Electric Surfboard & Diver Propulsion Vehicles (DPV)
Beyond robotics, the 4155 also finds applications in human-scale watercraft — electric surfboards, diver scooters, and underwater towing vehicles — where its balance of thrust, efficiency, and waterproof reliability shines.
Integration & Compatibility
The 4155 is designed for seamless integration with industry-standard brushless ESCs (Electronic Speed Controllers). Recommended pairing includes sensorless ESCs with water-cooling capability for sustained high-power operation. The motor’s standard mounting pattern (4 × M3 on a 25mm PCD) ensures compatibility with most off-the-shelf thruster brackets and propeller adapters.
Custom shaft lengths, connector types, and winding configurations are available through X-TEAM’s OEM/ODM service — enabling thruster manufacturers to optimize the motor for their specific propeller and housing designs.
Why Choose X-TEAM for Underwater Motors?
- 15+ Years of BLDC Expertise — Since 2007, X-TEAM has supplied brushless motors to DJI, SMC, HPI, and other industry leaders.
- ISO9001 & ISO14001 Certified — Every motor undergoes rigorous QC testing including submersion pressure tests, thermal cycling, and dynamic balancing.
- Full Customization Available — From KV ratings to shaft geometries to connector configurations, X-TEAM’s engineering team delivers tailored solutions.
- Global Shipping & Support — Fast delivery to marine robotics companies, research institutions, and thruster manufacturers worldwide.
Contact us at info@x-teamrc.com to discuss your underwater propulsion requirements or request a sample for evaluation.
