Description

1. General The specifications are applicable to Lidinglong motor models 3535

2. Operating condition

Item Specification Condition remark
2-1 Use voltage range 24~30V DC
2-2 Use temperature range -20 ~ +80°C No icing, no condensation, no moisture condensation, no chemical corrosion
2-3 Use humidity range 40% ~ 85%RH No moisture condensation, no chemical corrosion

3. Measuring condition

Item Specification Condition remark
3-1 Temperature +5 ~ +35°C Tested at normal temperature and humidity, if there is any doubt about the results, the test data at 20 ± 3 °C shall prevail
3-2 Humidity (65±20%)RH
3-3 Test voltage 10V DC
3-4 Test drive board Skyrc motor tester Skyrc motor tester
3-5 Position Axial vertically downward

*All test data are measured by our test environment and test instruments. When the test environment and test instruments change, the test results will have certain deviations. When there is any disagreement, the test environment and test instruments of our company shall prevail.

4. Mechanical specification

Item Specification Condition remark

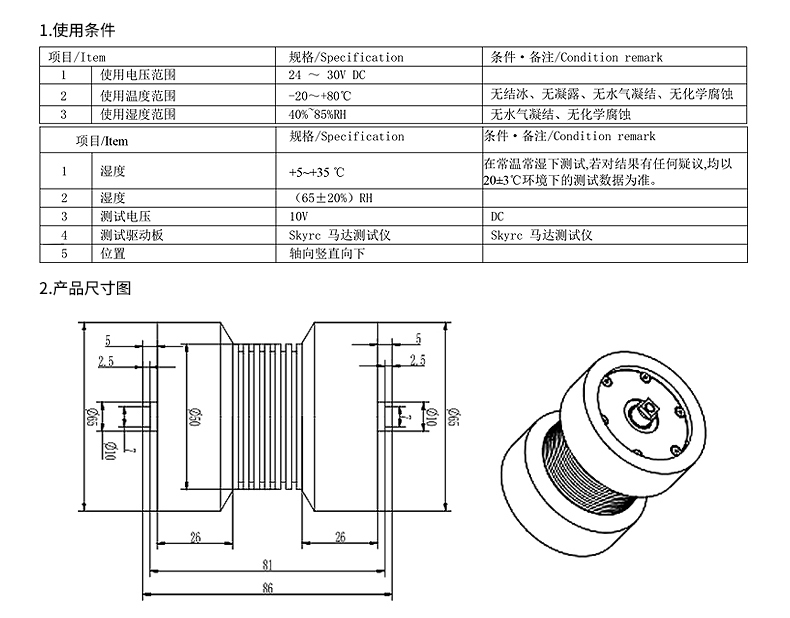

4-1 Dimensions Refer to the dimension drawing Please refer to the outline drawing of the motor for details.
4-2 Weight 498g Only for products confirmed in this specification
4-3 Appearance and color Front, middle, and back black Visual inspection
4-4 Hall line definition Refer to the dimension drawing Please refer to the outline drawing of the motor for details.
4-5 Motor wire length Refer to the dimension drawing Please refer to the outline drawing of the motor for details.
4-6 Motor shaft diameter length Diameter 10mm length 8mm Please refer to the outline drawing of the motor for details.
4-7 Motor mounting hole None



5. Performance and characteristic

Item Specification Condition remark
5-1 Stator and rotor structure 12N7P(thickness magnetization)
5-2 Rated voltage 30V DC
5-3 KV value 100KV±5% Test under DC30V voltage, use a motor tester to test
5-4 No-load speed 3000±5%rpm Test under DC30V voltage, use a motor tester to test
5-5 No-load current 0.5A Max Test under DC30V voltage, use a motor tester to test
5-6 Torque coefficient Kt 420mNm/A Data for reference
5-7 Rated torque 550mN.M Data for reference
5-8 Rated speed 2575rpm Data for reference
5-9 Rated input current 6A Data for reference
5-10 Rated output power 180W Data for reference
5-11 Stall torque 5.65N.M Max Data for reference
5-12 Stall current 66A Data for reference
5-13 Maximum input power(30V) 450W Data for reference
5-14 Inductance 1360~73mH LP-Q 1.0kHz
5-15 Terminal resistance 460±30m Ω
5-16 Three-phase resistance difference ≤5mΩ Three-phase internal resistance difference



6. Performance Curve Chart13

7. Precautions for use

1: The motor should be carefully and gently placed during transportation and handling to avoid damage to the motor body and performance caused by collision and knocking.

2: The motor should be stored at room temperature and humidity (25 ℃, 65% RH) ventilation environment, to prevent moisture, and chemical corrosion (Note: more than 6 months, the internal spindle will be oxygenated

(Note: For more than 6 months, the internal spindle will be oxygenated rust is normal, in the case of not affecting the performance is still regarded as a qualified product)

3: Don’t block the shaft often after the power is connected. Welding should be completed within 5 seconds to avoid damage to terminals or wires.
