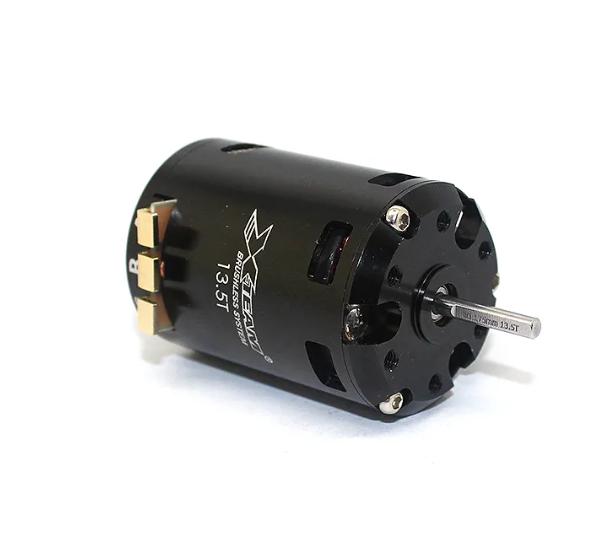

Brushless DC motors (BLDC motors) are widely used in household appliances, drones, electric vehicles, and industrial automation due to their high efficiency, long lifespan, and low noise. The driver chip is the core component that enables high-performance operation of BLDC motors. For beginners, understanding the working principle and applications of BLDC motor driver chips is the first step in learning motor control.
Role of the BLDC Motor Driver Chip
A driver chip, also called a BLDC driver IC, converts low-power control signals from the controller into high-power currents that drive the motor. As the “execution layer” of the motor system, it controls motor speed, direction, and torque, achieving precise motor regulation.
Key functions include:
PWM Speed Control: Uses pulse-width modulation to adjust motor speed efficiently.
Commutation Control: Performs electronic commutation based on Hall sensors or sensorless algorithms.
Protection Functions: Safeguards against overcurrent, overvoltage, and overheating, ensuring motor and circuit safety.
Torque Control: Adjusts current to control output torque accurately, meeting varying load demands.
In short, the driver chip directly affects the stability, efficiency, and lifespan of the BLDC motor.
Main Types of Driver Chips
Common BLDC motor driver chips can be divided into two types:
Sensored Driver Chips
Use Hall or optical sensors to detect motor position for commutation.
Advantages: Accurate control and good startup performance, suitable for precision equipment and industrial applications.
Disadvantages: Requires additional sensors, increasing system cost and complexity.
Sensorless Driver Chips
Detect back EMF or estimate motor state for commutation without external sensors.
Advantages: Simplified structure, lower cost, smaller size, ideal for small household appliances and drones.
Disadvantages: Control accuracy at low speeds may be slightly lower and requires specific algorithms.
Driver Chip Selection Guide
For beginners selecting a BLDC driver chip, consider:
Motor Parameter Matching: Voltage, current, and power ratings must match the chip’s capabilities.
Control Mode Requirement: Choose sensored or sensorless based on application scenarios.
Protection Features: Short-circuit, overcurrent, and overtemperature protection ensure system reliability.
Package and Heat Dissipation: Choose a suitable package considering installation space and thermal conditions for stable long-term operation.
Application Scenario: Selection differs between small household motors and industrial high-power motors; consider actual load requirements.
Practical Applications and Tips
In fans, air conditioners, drones, and electric vehicles, BLDC driver chips not only control motor speed but can optimize efficiency by adjusting PWM frequency. Key practical tips include:
Ensure motor wiring matches the chip datasheet to prevent damage.
Start testing at low voltage and low load, gradually increasing load.
Use with a microcontroller (MCU) for closed-loop control to further improve performance.
Conclusion
BLDC motor driver chips are the core of BLDC motor systems and a key starting point for beginners in motor control. Understanding their functions, types, selection methods, and practical applications can improve motor efficiency, stability, and lifespan. Mastering driver chip knowledge lays a solid foundation for further study in motor control and intelligent drive technology.
