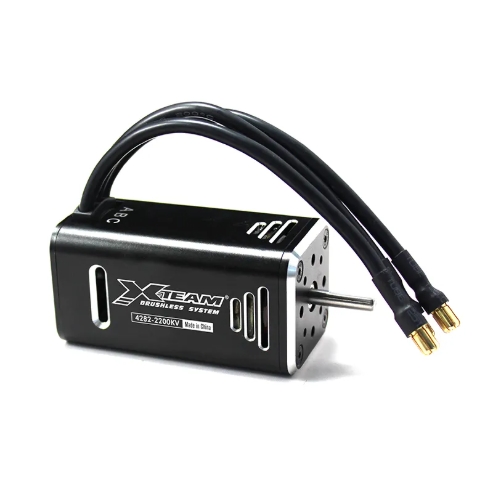

The BLDC motor (Brushless DC Motor) has become an essential component in modern industries such as robotics, electric vehicles, home appliances, and automation systems. Its advantages—high efficiency, low noise, compact design, and long service life—make it the preferred choice over traditional brushed motors. However, effectively controlling the BLDC motor’s speed and direction is crucial to unleashing its full potential. In this article, we’ll explore the core methods and best practices for achieving precise BLDC motor control.
Understanding How a BLDC Motor Works
A BLDC motor consists of a stator with coils and a rotor with permanent magnets. Unlike brushed motors, BLDC motors rely on electronic commutation, where the controller switches the current in the coils based on rotor position feedback. This ensures smooth and continuous rotation.
Therefore, controlling a BLDC motor involves managing the timing and sequencing of the electronic commutation. This directly determines the motor’s speed and rotation direction.
Speed Control Methods for BLDC Motors
PWM Speed Control (Pulse Width Modulation)
The most common method for controlling BLDC motor speed is PWM:
A higher duty cycle → higher average voltage → faster speed
A lower duty cycle → lower average voltage → slower speed
By adjusting the duty cycle of the PWM signal applied to the motor, the controller regulates the average voltage and thus the motor speed. This method offers fast response and high efficiency and is widely used in tools, drones, and e-bikes.
Closed-Loop Feedback Control
In applications requiring stable and accurate speed, closed-loop systems are preferred. These systems include:
Position or speed feedback sensors (e.g., Hall sensors or encoders)
A control algorithm (typically PID) to compare actual vs. desired speed
Real-time adjustments to the PWM signal
This ensures consistent speed regardless of load variations and is commonly used in industrial automation and precision medical devices.
Voltage-Based Control
Some low-cost applications control speed by directly varying the input voltage. However, this approach offers less precision and is sensitive to load changes. It’s generally not recommended for demanding environments.
Direction Control of a BLDC Motor
Reversing Commutation Sequence
The rotation direction of a BLDC motor is determined by the order in which current flows through the stator coils:
Clockwise: A → B → C → A
Counterclockwise: A → C → B → A
By changing the commutation logic inside the controller, you can reverse the motor direction. Always ensure the motor is stopped before switching directions to avoid stress or damage.
Using Controller Settings
Most BLDC motor controllers or drivers support direction control through software configuration or hardware pins (such as a DIR input). By toggling this pin, users can easily switch the direction.
Swapping Motor Phase Wires (Hardware-Based)
In hardwired systems, direction can be changed by physically swapping any two of the three phase wires. However, this method is not suitable for applications where frequent direction changes are needed.
Practical Tips for BLDC Motor Control
Avoid abrupt starts/stops or rapid direction changes, which can damage the motor or driver. Use acceleration/deceleration ramps.
Optimize startup algorithms, especially for sensorless BLDC motors, to prevent jitter or stalling.
Monitor motor temperature and ensure proper heat dissipation, especially in high-power applications.
Use advanced motor drivers with fault detection, overcurrent protection, and thermal shutdown for safer operation.
Precise control of a BLDC motor’s speed and direction is essential for achieving optimal performance in any application. Whether you’re using PWM for basic speed control or implementing closed-loop feedback systems for high-precision tasks, understanding the core control strategies is vital. For direction control, both software and hardware options exist depending on your design requirements.
If you’re developing equipment that relies on high-performance BLDC motors, be sure to select the right controller and configuration. Professional consultation and custom solutions can help you integrate efficient and reliable BLDC motor systems into your product line.
