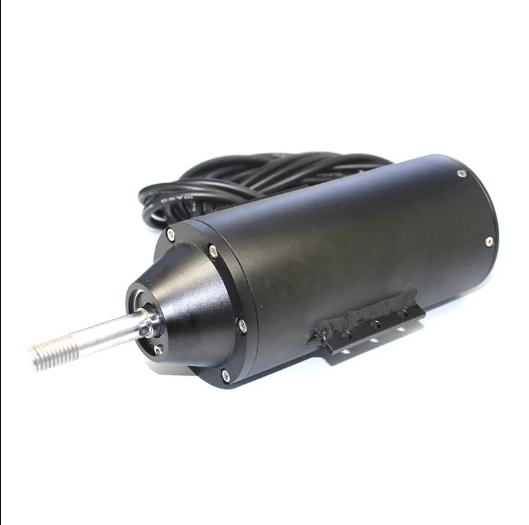

The demand for BLDC motors (Brushless DC motors) continues to grow across industries like robotics, electric vehicles, HVAC systems, and drones. But what if you wanted to build one yourself—from scratch or using readily available parts? This article will walk you through how to make a BLDC motor, providing both a technical overview and hands-on tips. Whether you’re a hobbyist or an engineer, this guide aims to help you understand the design, construction, and working principles behind a DIY BLDC motor.
Understanding the Basics: What Is a BLDC Motor?
Before diving into the build process, it’s essential to understand how a BLDC motor works.
A BLDC motor uses:
Permanent magnets on the rotor (moving part)
Electromagnetic windings on the stator (stationary part)
Electronic commutation instead of brushes to control current flow
The rotor spins as the magnetic field generated by the stator windings changes, guided by either sensors or sensorless control algorithms.
Materials and Components You Will Need
To make a simple BLDC motor, gather the following essential components:
Stator core (typically made of laminated silicon steel)
Copper wire for winding the coils
Permanent magnets (Neodymium magnets are commonly used)
Rotor hub or casing
Bearings and shaft
Motor housing/frame
Sensor or sensorless control setup
BLDC motor controller/ESC (Electronic Speed Controller)
Optional: Hall effect sensors for position detection
You can source many of these parts from broken hard drives, CD-ROM drives, electric scooters, or order them from electronics suppliers.
Step-by-Step: How to Make a BLDC Motor
Step 1: Design the Motor Geometry
Choose the number of poles and slots (e.g., 12-slot stator and 14-pole rotor).
Calculate winding turns per coil based on voltage and current ratings.
Determine the air gap between rotor and stator—too large and efficiency drops, too tight and friction increases.
Step 2: Wind the Stator Coils
Use enameled copper wire (commonly 24–30 AWG for small motors).
Carefully wind the coils around the stator teeth in a 3-phase configuration (A-B-C, A-B-C…).
Make sure all windings are consistent and insulated.
Step 3: Build the Rotor Assembly
Attach permanent magnets evenly spaced on the inner or outer surface of the rotor.
Ensure the magnet polarity alternates (N-S-N-S…) for proper interaction with the stator fields.
Mount the rotor on a shaft with precision bearings for smooth rotation.
Step 4: Assemble the Housing
Fix the stator in the motor casing.
Place the rotor with shaft and ensure smooth rotation without contact.
Secure the motor with bolts, ensuring all mechanical parts are aligned.
Step 5: Add Control System
Connect the stator windings to a BLDC controller or ESC.
If using sensors, wire up Hall sensors to the controller.
Program or configure the ESC to match your motor’s pole pairs and voltage specs.
Testing Your DIY BLDC Motor
Once assembled:
Connect your BLDC motor to a power source through the controller.
Slowly ramp up the power and observe the rotor motion.
Measure speed, temperature, and current draw.
Fine-tune the controller if needed for optimal commutation.
Caution: Always test in a safe environment. Improper wiring or magnet positioning can cause dangerous failures.
Challenges You Might Face
While learning how to make a BLDC motor, be aware of these common issues:
Incorrect winding direction can cause improper rotation or no rotation at all.
Magnet misalignment reduces efficiency and may cause vibration.
Overheating due to poor winding or excessive current.
Unbalanced rotor leads to noisy or unstable motion.
Use precision tools like a digital multimeter, tachometer, or oscilloscope to troubleshoot performance.
Why Build Your Own BLDC Motor?
Educational Value: Learn electromagnetics, electronics, and mechanical design.
Customization: Build motors tailored to your application’s power, speed, or torque.
Cost-Saving: Useful in prototyping or experimental projects.
Fun: It’s a rewarding hands-on engineering challenge!
Learning how to make a BLDC motor isn’t just a technical task—it’s a journey into modern motor design, combining electronics, mechanics, and software. While commercial motors are widely available, building your own gives unmatched insight into performance tuning and customization.
Whether you’re powering a DIY drone, testing a robotics system, or just satisfying your curiosity, this guide provides the foundational knowledge you need to get started.
