Description

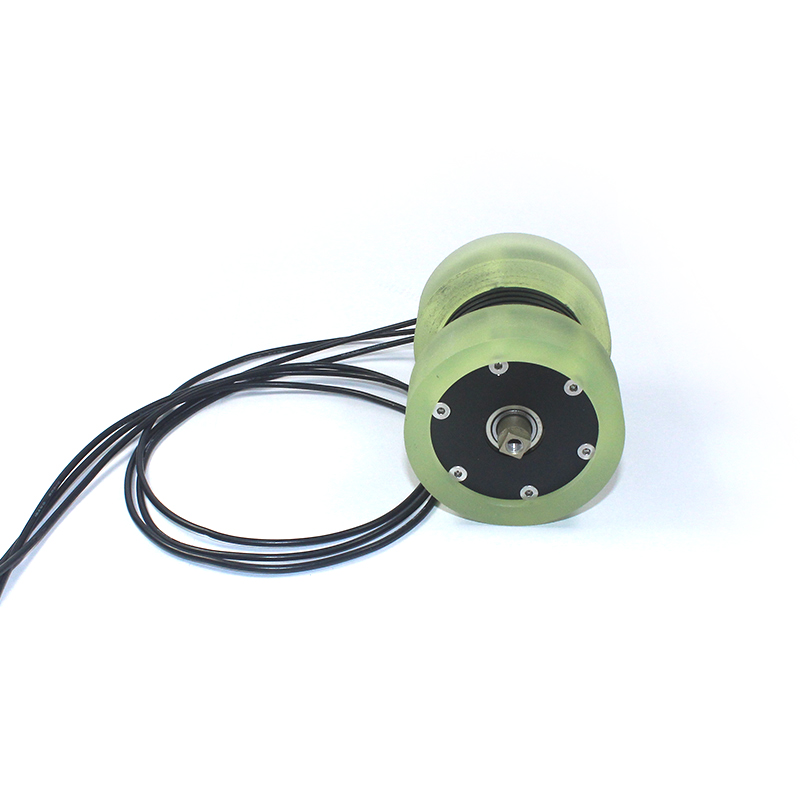

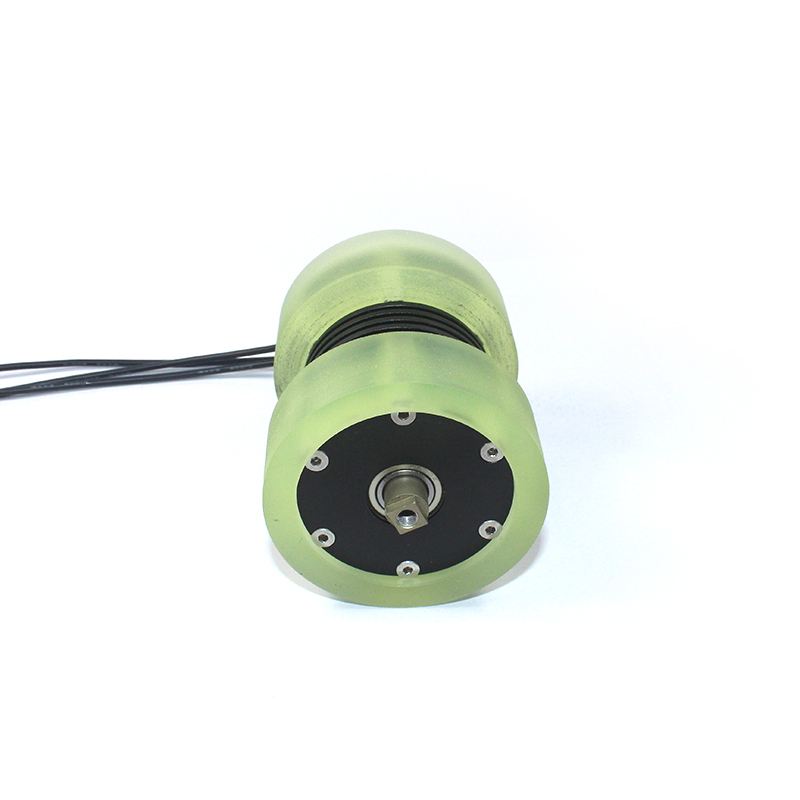

1. General The specifications are applicable to Lidinglong motor models 3535
2. Operating condition
| Item | Specification | Condition remark | |
| 2-1 | Use voltage range | 24~30V DC | |
| 2-2 | Use temperature range | -20 ~ +80°C | No icing, no condensation, no moisture condensation, no chemical corrosion |
| 2-3 | Use humidity range | 40% ~ 85%RH | No moisture condensation, no chemical corrosion |
3. Measuring condition
| Item | Specification | Condition remark | |
| 3-1 | Temperature | +5 ~ +35°C | Tested at normal temperature and humidity, if there is any doubt about the results, the test data at 20 ± 3 °C shall prevail |
| 3-2 | Humidity | (65±20%)RH | |
| 3-3 | Test voltage | 10V | DC |
| 3-4 | Test drive board | Skyrc motor tester | Skyrc motor tester |
| 3-5 | Position | Axial vertically downward | |
*All test data are measured by our test environment and test instruments. When the test environment and test instruments change, the test results will have certain deviations. When there is any disagreement, the test environment and test instruments of our company shall prevail.
4. Mechanical specification
| Item | Specification | Condition remark | |
| 4-1 | Dimensions | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-2 | Weight | 498g | Only for products confirmed in this specification |
| 4-3 | Appearance and color | Front, middle, and back black | Visual inspection |
| 4-4 | Hall line definition | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-5 | Motor wire length | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-6 | Motor shaft diameter length | Diameter 10mm length 8mm | Please refer to the outline drawing of the motor for details. |
| 4-7 | Motor mounting hole | None | |
5. Performance and characteristic
| Item | Specification | Condition remark | |
| 5-1 | Stator and rotor structure | 12N7P(thickness magnetization) | |
| 5-2 | Rated voltage | 30V | DC |
| 5-3 | KV value | 100KV±5% | Test under DC30V voltage, use a motor tester to test |
| 5-4 | No-load speed | 3000±5%rpm | Test under DC30V voltage, use a motor tester to test |
| 5-5 | No-load current | 0.5A Max | Test under DC30V voltage, use a motor tester to test |
| 5-6 | Torque coefficient Kt | 420mNm/A | Data for reference |
| 5-7 | Rated torque | 550mN.M | Data for reference |
| 5-8 | Rated speed | 2575rpm | Data for reference |
| 5-9 | Rated input current | 6A | Data for reference |
| 5-10 | Rated output power | 180W | Data for reference |
| 5-11 | Stall torque | 5.65N.M Max | Data for reference |
| 5-12 | Stall current | 66A | Data for reference |
| 5-13 | Maximum input power(30V) | 450W | Data for reference |
| 5-14 | Inductance | 1360~73mH | LP-Q 1.0kHz |
| 5-15 | Terminal resistance | 460±30m Ω | |
| 5-16 | Three-phase resistance difference | ≤5mΩ | Three-phase internal resistance difference |

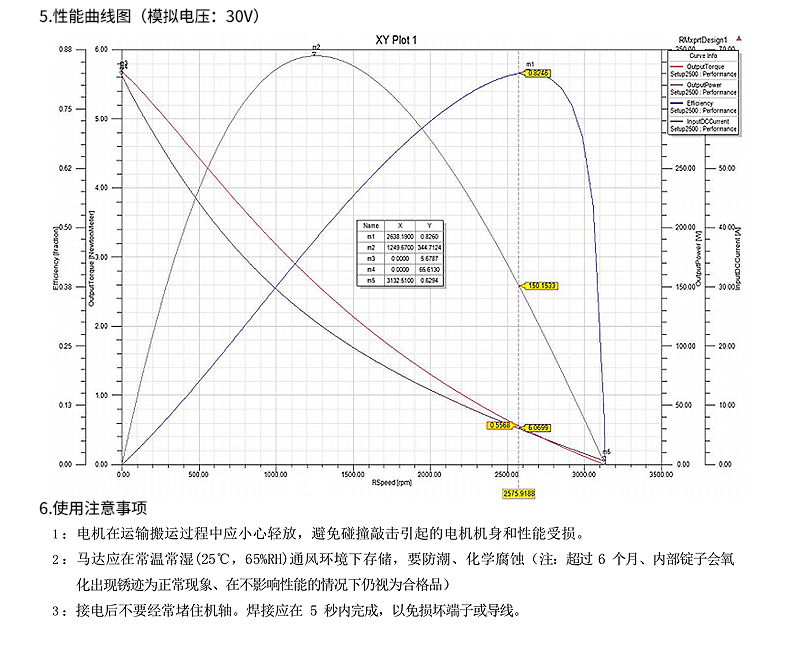

6. Performance Curve Chart
7. Precautions for use
1: The motor should be carefully and gently placed during transportation and handling to avoid damage to the motor body and performance caused by collision and knocking.
2: The motor should be stored at room temperature and humidity (25 ℃, 65% RH) ventilation environment, to prevent moisture, and chemical corrosion (Note: more than 6 months, the internal spindle will be oxygenated
(Note: For more than 6 months, the internal spindle will be oxygenated rust is normal, in the case of not affecting the performance is still regarded as a qualified product)
3: Don’t block the shaft often after the power is connected. Welding should be completed within 5 seconds to avoid damage to terminals or wires.
