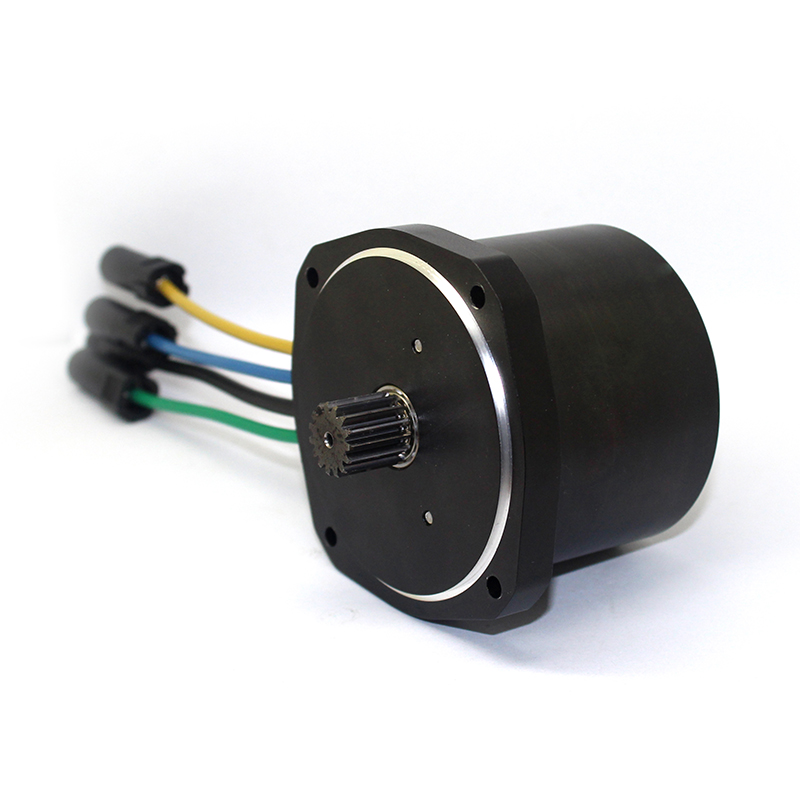

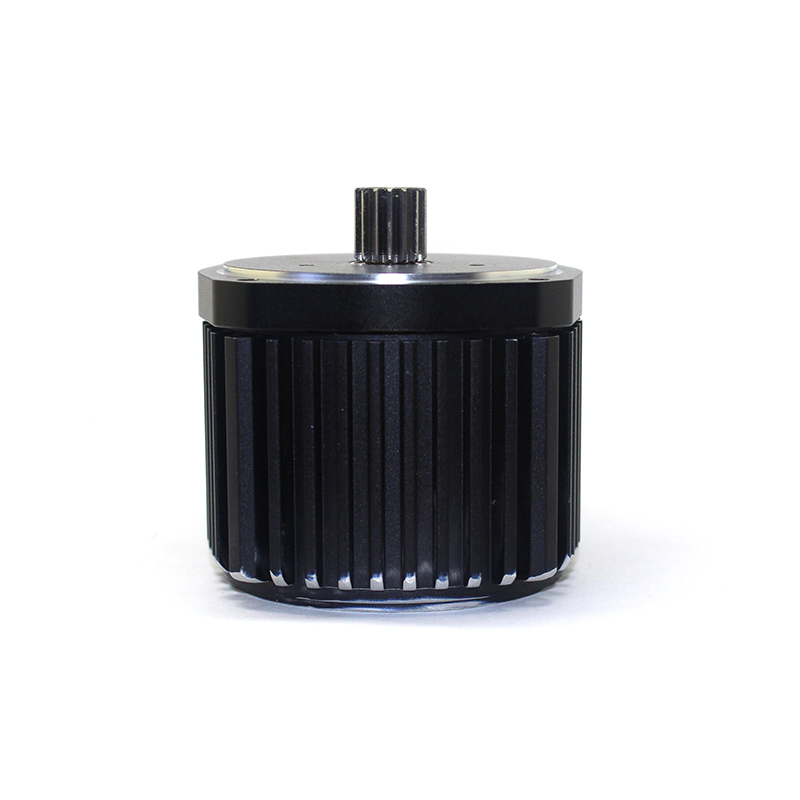

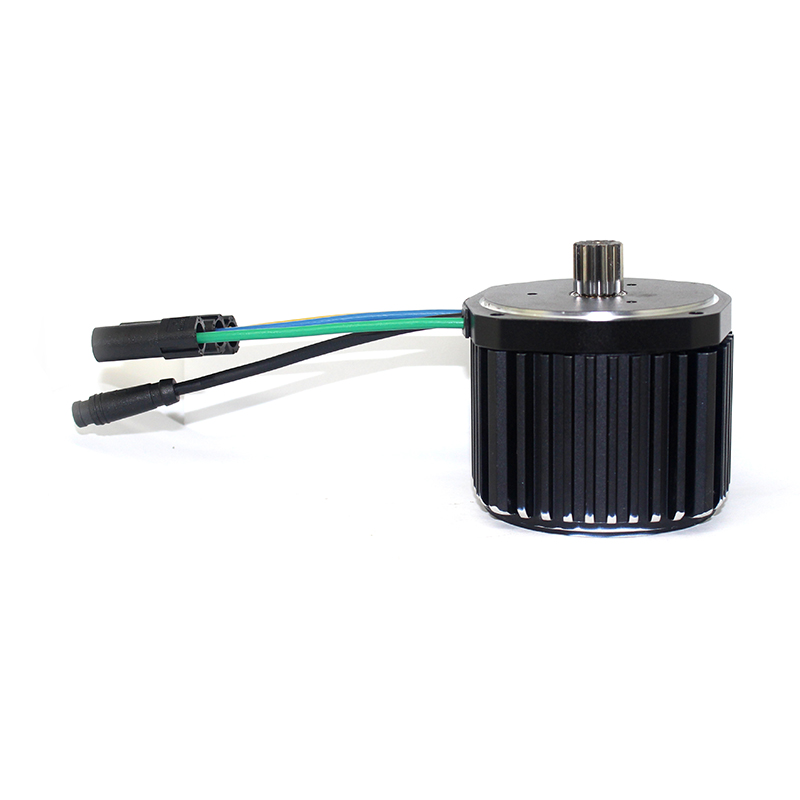

5140 brushless motor for electric bicycle

X-TEAM 5140 brushless motor for electric bicycle

Contact Us

Description

  1. General The specifications are applicable to Lidinglong motor models 5140
  2. Operating condition
ItemSpecificationCondition remark
2-1Use voltage range36~52V DC
2-2Use temperature range-20 ~ +80°CNo icing, no condensation, no moisture condensation, no chemical corrosion
2-3Use humidity range40% ~ 85%RHNo moisture condensation, no chemical corrosion
  1. Measuring condition
ItemSpecificationCondition remark
3-1Temperature+5 ~ +35°CTested at normal temperature and humidity, if there is any doubt about the results, the test data at 20 ± 3 °C shall prevail
3-2Humidity(65±20%)RH
3-3Test voltage10VDC
3-4Test drive boardSkyrc motor testerSkyrc motor tester
3-5PositionAxial vertically downward

*All test data are measured by our test environment and test instruments. When the test environment and test instruments change, the test results will have certain deviations. When there is any disagreement, the test environment and test instruments of our company shall prevail.

4. Mechanical specification

ItemSpecificationCondition remark
4-1DimensionsRefer to the dimension drawingPlease refer to the outline drawing of the motor for details.
4-2WeightSubject to the real thingOnly for products confirmed in this specification
4-3Appearance and colorFront, middle,and back blackVisual inspection
4-4Motor wire lengthWithout a head 80mmPlease refer to the outline drawing of the motor for details.
4-5Motor shaft diameter lengthGear out shaftPlease refer to the outline drawing of the motor for details.
4-6Motor mounting holeNone



5. Performance and characteristic

ItemSpecificationCondition remark
5-1Stator and rotor structure12N7P(Radial Magnetization)
5-2Rated voltage52VDC
5-3KV value146KV±5%Test under DC52V voltage, use a motor tester to test
5-4No-load speed7600±5%rpmTest under DC52V voltage, use a motor tester to test
5-5No-load current2.5A MaxTest under DC52V voltage, use a motor tester to test



6. Precautions for use

6-1:The motor should be carefully and gently placed during transportation and handling to avoid damage to the motor body and performance caused by collision and knocking.

6-2: The motor should be stored at room temperature and humidity (25℃, 65%RH) in a ventilated environment to prevent moisture and chemical corrosion (Note: for more than 6 months, the internal spindle will oxidize and rust is normal.

It is normal to see rust stains on the internal spindle after 6 months, and it is still considered as a qualified product if it does not affect the performance)

6-3: Don’t block the shaft often after the power is connected. Welding should be done within 5 seconds to avoid damaging the terminals or wires.



7. Remarks

7-1:This specification is for engineering sample confirmation. Large-scale production will be performed according to this sample confirmation standard. After sample confirmation, please make sure to sign and return it.

7-2: If the sample is not signed and returned within 3 working days after the sample is confirmed, we will confirm the sample by default when we receive the order from the user.



8. Product packaging standards

8-1:Packing according to a layer of six motors, a cardboard box put two layers, two layers need to be staggered stacked, the first layer shaft facing up, the second layer shaft facing down, and the uppermost layer needs to pad a layer of cardboard.
