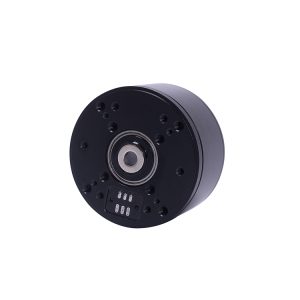

5215 Gimbal brushless motor

Description

The 5215 Gimbal brushless motor is a high-performance brushless DC motor (BLDC) specifically designed for applications such as drone gimbals, photography stabilizers, small robotic arms, and other applications that require high precision and high-efficiency driving. The 5215 Gimbal brushless motor stands out in the market with its compact structure, optimized electromagnetic performance, and integrated advanced control system, becoming the first choice for many professional users.

Performance Parameters

Product Model: XTG5215

Weight: 232 grams

Stator Size (Diameter x Length): Φ52x15mm

Configuration: 24N22P, that is, 24 pole pairs and 22 commutation poles, providing smooth and efficient operation and ensuring the stability of the motor’s performance.

Number of Turns: 80 turns

Voltage Range: 12~24V

Torque: Under a voltage of 14.8V, the output torque can reach as high as 0.75N.m, meeting the application requirements of most light to medium loads.

Resistance: 8Ω

No-load Current: 89mA

Maximum Stall Current: 2.5A

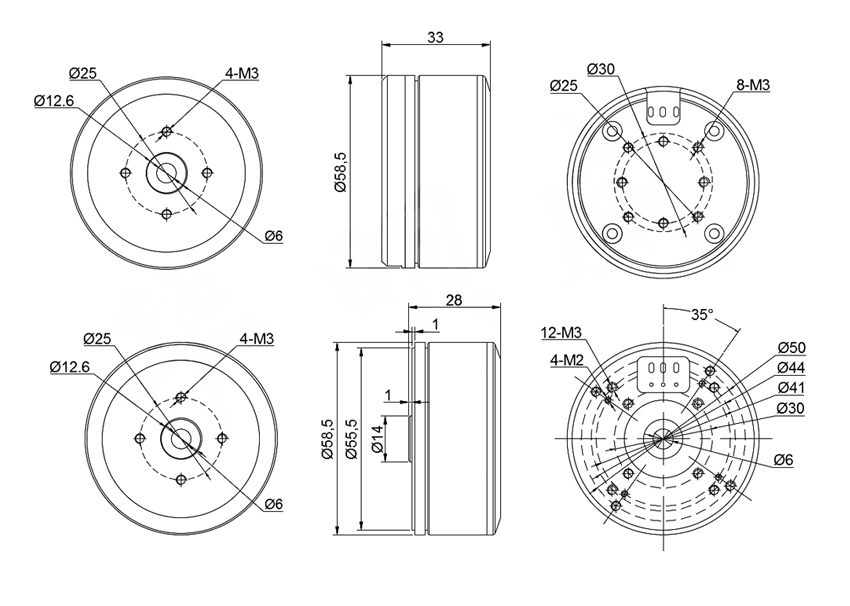

Stator Mounting Hole: Φ44mm, equipped with 4 M3 threaded holes for easy fixing and installation, ensuring a firm connection between the motor and the equipment.

Rotor Mounting Hole: Φ25mm, with 4 M3 threaded holes to ensure a firm connection of the rotor components, improving the operation stability and precision of the motor.

Maximum Load Capacity: It can support a gimbal or camera weighing up to 3500 grams, suitable for various photography and stabilization systems and meeting the needs of professional users.

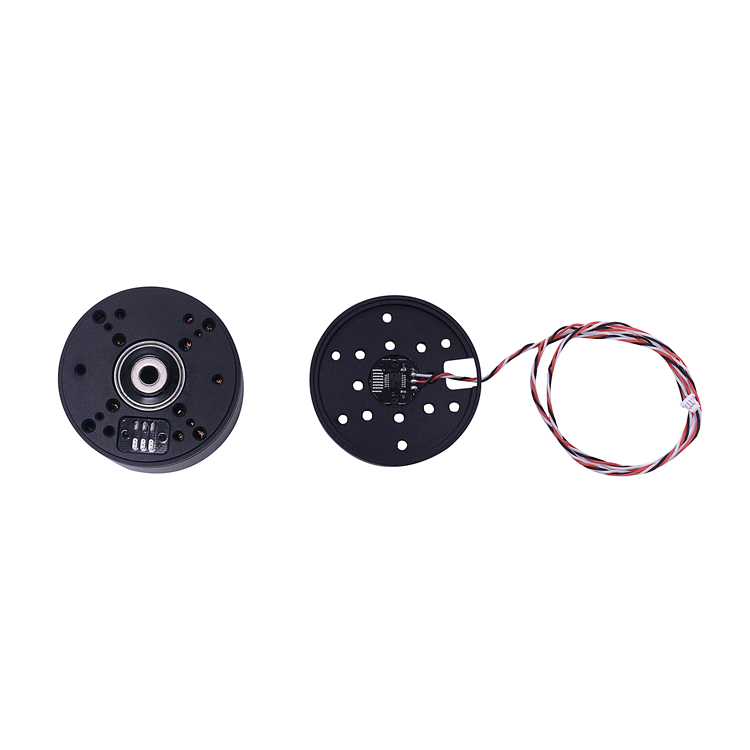

Encoder: The AS5048A is adopted to provide high-precision position feedback for precise control, ensuring the accuracy and stability of the motor’s operation.

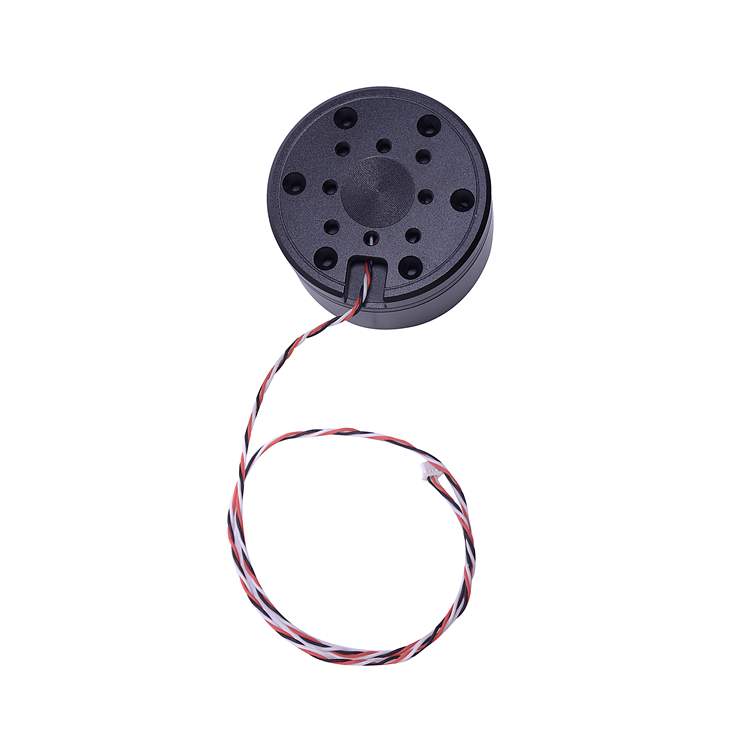

Slip Ring: With a diameter of 12.5mm

Structural Features

The 5215 Gimbal brushless motor adopts advanced brushless DC technology, which reduces friction and wear, and improves efficiency and service life. The design of its stator and rotor optimizes the magnetic field distribution, making the torque output smoother and the noise lower. The AS5048A encoder provides high-precision position information, making the motor control more accurate and suitable for occasions requiring high-precision position control. The 5215 Gimbal brushless motor is also equipped with a slip ring to ensure the electrical connection between the rotating parts and the fixed parts, suitable for applications that require continuous rotation.

Application Fields

Drone Gimbals: Provide stable and precise power support for the gimbal system of drones, ensuring that the camera can capture high-quality images during flight.

Lightweight Camera Stabilizers: Suitable for lightweight camera stabilizers, helping photographers achieve smooth shooting effects.

Small Robot Joints: The high torque and high precision characteristics can meet the needs of robots in complex movements, and the lightweight design helps improve the flexibility of the robots.

Industrial Automation Equipment: In industrial automation equipment that requires high-precision positioning and light load capacity, this motor can provide reliable driving force, improving production efficiency and product quality.

Precautions

Safe Operation: Before operation, ensure that you are familiar with the motor’s usage instructions and follow all safety specifications. Avoid using the motor in wet, high-temperature, or flammable environments to prevent electric shock or fire.

Voltage Matching: Ensure that the power supply voltage is within the rated voltage range of the motor to avoid overheating or damage to the motor.

Load Control: Do not exceed the maximum load capacity of the motor to avoid overloading the motor and affecting its performance and service life.

Regular Maintenance: Regularly check the installation, connection, and operating status of the motor. Clean up dust and debris in a timely manner to keep the motor clean. Regularly lubricate the bearings and transmission components to reduce friction and wear.

Professional Maintenance: If the motor malfunctions, please have it repaired by a professional. Do not disassemble or repair it privately.

If you are interested in the 5215 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
