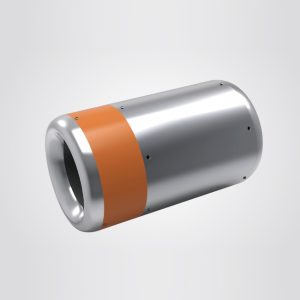

S56 shaftless Rim driven propulsion thruster

Description

The S56 shaftless Rim driven propulsion thruster is a compact and high-performance shaftless water jet propulsion device specially developed for underwater propulsion applications. It integrates the motor, drive system, and propeller, featuring high efficiency, compactness, and stability. It is ideally suited for underwater robots, remotely operated vehicles (ROVs), and other underwater equipment. Compared to traditional propulsion systems, the S56 shaftless Rim driven propulsion thruster reduces complex components and connections, making installation and maintenance simpler while significantly enhancing performance and reliability.

Performance Parameters

Model: S56

Propeller Diameter: Φ57.6mm

Product Dimensions: Φ155mm x 90mm

Weight: 1.8kg

Rotational Speed Range: 500～4500RPM (accuracy ±5%)

Maximum Rotational Speed: 4500RPM

Maximum Thrust: 100N

Maximum Power: 890W

Waterproof Rating: IP68 (dustproof and waterproof, suitable for long-term immersion)

Operating Voltage: 48V

Communication Method: CAN Bus

Structural Features

Integrated Design: The motor, drive system, and propeller are tightly integrated, reducing redundant components in traditional designs and improving overall stability and durability.

Compact Form Factor: Its small size makes it suitable for installation in confined spaces, enabling flexible use in various underwater devices.

High-Efficiency Propulsion: Adopting advanced shaftless technology minimizes energy loss and achieves high propulsion efficiency. With a maximum thrust of 100N, it meets diverse underwater mission requirements.

Low-Noise Operation: Optimized design and precision manufacturing ensure near-silent operation, ideal for noise-sensitive underwater tasks.

Intelligent Control: Equipped with a built-in closed-loop control system, it can receive external commands via the CAN interface, facilitating integration and operation while enhancing device intelligence and flexibility.

Application Fields

Underwater Robots: Provides efficient propulsion for ROVs, AUVs (autonomous underwater vehicles), and other systems to support complex underwater missions.

Underwater Observation Equipment: Offers precise displacement control and mobility for underwater cameras, sensors, and other devices.

Underwater Work Tools: Delivers reliable propulsion support for underwater construction, maintenance, and other operations.

Precautions

Safety: Check power connections before use to ensure no short circuits or overloads. Follow safety protocols during operation.

Maintenance: Regularly inspect and clean the thruster to ensure proper functioning. Contact after-sales service for abnormalities.

Environmental Adaptation: Although rated IP68, use caution in extreme environments (e.g., high temperature, high pressure, corrosive water).

Installation: Follow the manual for correct installation to avoid looseness or vibration affecting performance.

Speed Control: Gradually adjust rotational speed during startup to prevent sudden acceleration/deceleration and reduce equipment impact.

If you are interested in the S56 shaftless Rim driven propulsion thruster or need more product information, please feel free to contact us. We are committed to providing high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance scenarios, X-TEAM motors deliver reliable power support. For inquiries or orders, contact us at:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

X-team. Power-S56 is a high-efficiency, highly integrated shaftless water jet propeller, with a maximum thrust of 100N. It integrates the traditional motor, drive, shaft system and propeller into a single unit, featuring compact structure, good reliability, high propulsion efficiency and low noise. It is equipped with closed-loop speed control function and CAN interface to receive external speed command, which is convenient for users to integrate and use.

Model: S56
Impeller Diameter: 57.6MM
Product Size: 15.5CM* 9.0CM
Weight ：1.8KG
Adjustment range：500～4500RPM
Maximum speed：4500RPM
Maximum thrust: 100N
Maximum power: 890W
Waterproof grade：IP68
Working voltage: 48V
Communication mode: CAN assembly
