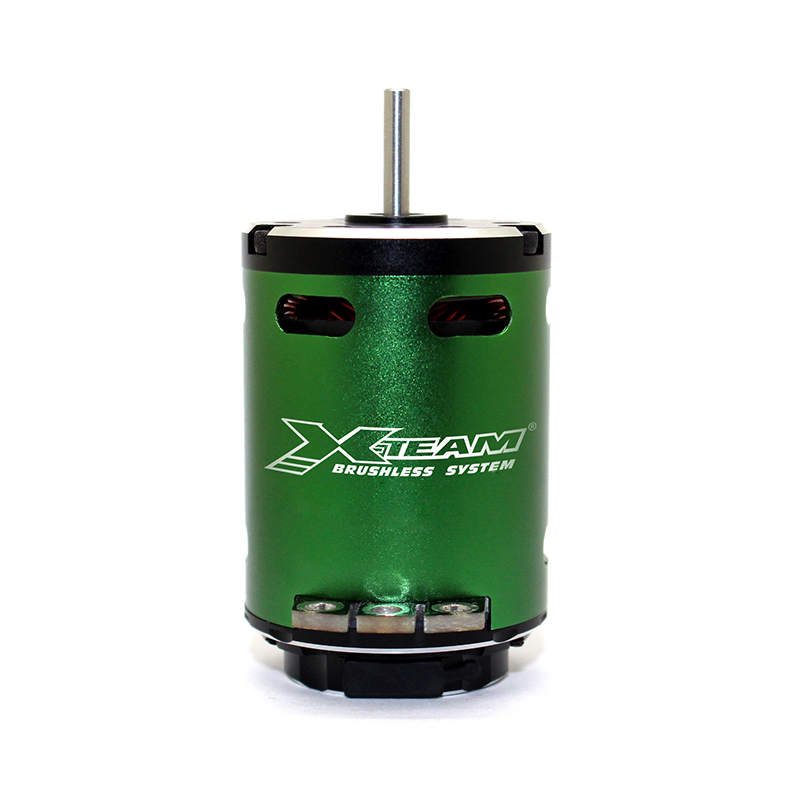

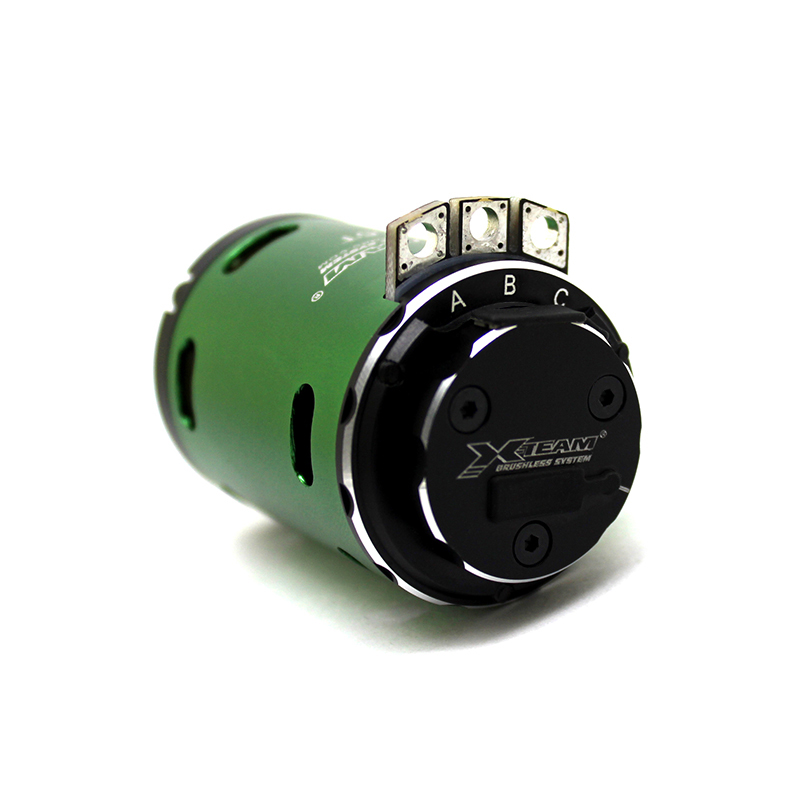

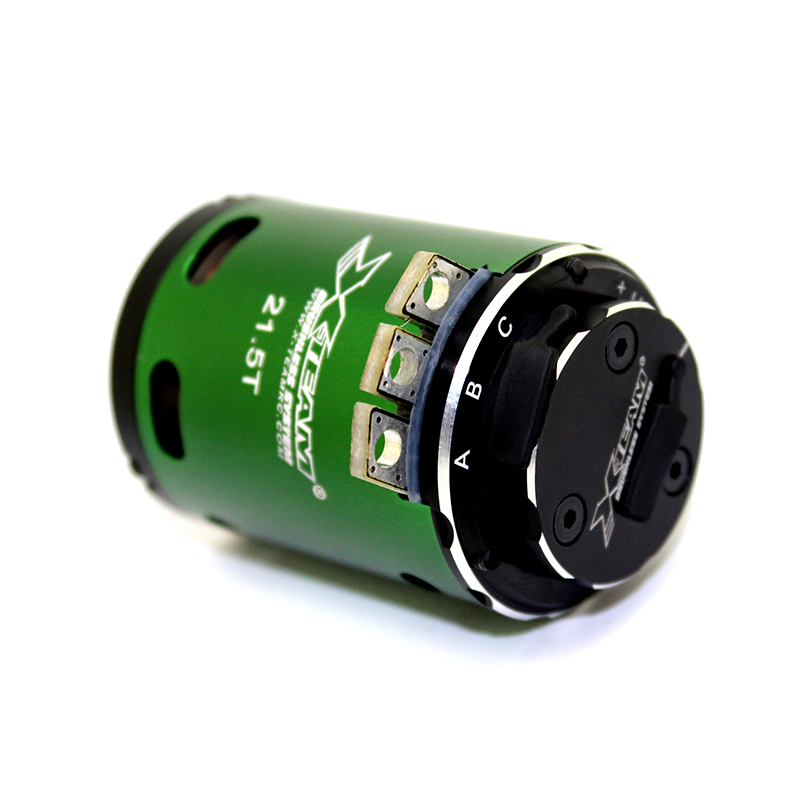

XTI540-Y sensored brushless motor for 1/10th car model

Description

The XTI540-Y sensored brushless motor for 1/10th car model is a high-performance DC motor specifically designed for various applications that require precise control and high efficiency. With a 2-pole design, this motor features a compact structure, smooth operation, high efficiency, and low maintenance, making it an ideal choice for fields such as drones, robots, power tools, and 3D printers.

Performance Parameters

Model: XTI540-Y

Color: Green

Number of Poles: 2 poles

Mounting Holes: Φ25mm, 4xM3 threaded holes

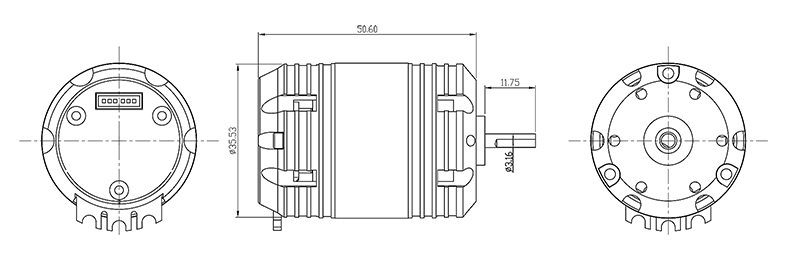

Dimensions: Φ36mm (diameter) × 50mm (length)

Weight: Approximately 178g

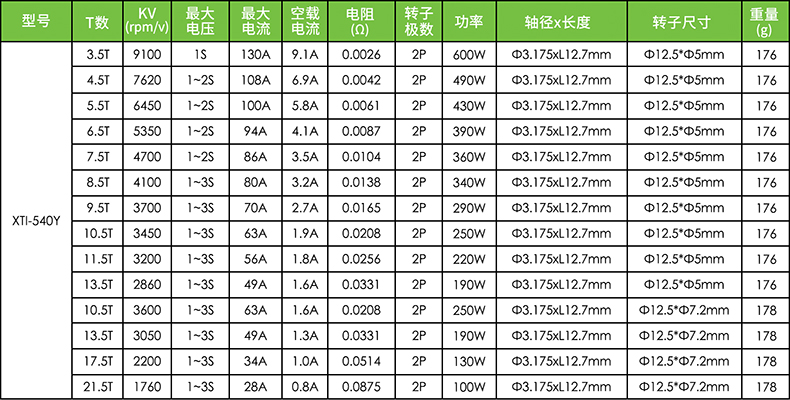

Voltage Range: The voltage range varies according to different T numbers. For example, the 3.5T version is suitable for 1S (usually referring to a lithium battery of 3.7V or 4.2V), and the 4.5T and 5.5T versions are suitable for 1-2S (that is, a lithium battery pack of 7.4V to 8.4V).

Maximum Current: The maximum current varies among different T number versions. It is 130A for the 3.5T version, 108A for the 4.5T version, and 100A for the 5.5T version.

No-load Current: 9.1A (3.5T), 6.9A (4.5T), and 5.8A (5.5T) respectively

Resistance: 0.0026Ω (3.5T), 0.0042Ω (4.5T), and 0.0061Ω (5.5T) respectively

Shaft Diameter: Φ3.175mm, suitable for various transmission devices and loads.

Shaft Length: 12.7mm, ensuring sufficient connection strength and stability.

Rotor Dimensions: Φ12.5mm×Φ5mm, and the rotor dimensions affect the torque and rotational speed of the motor.

Structural Features

High-performance Design: The XTI540-Y sensored brushless motor for 1/10th car model is made of high-quality materials, with high power density and high-efficiency output, ensuring stable operation under various conditions.

Compact Structure: The motor is small in size and light in weight, making it easy to install and carry, and suitable for various applications with limited space.

Precise Control: The motor has a fast response speed and high control accuracy, enabling complex motion control and positioning functions.

Low Noise: Advanced noise reduction technology is adopted, and the operation noise is low, providing a comfortable usage environment.

Application Fields

Drones: Provide stable power support to ensure flight stability and safety.

Robots: Used to drive the joints and transmission systems of robots, achieving flexible movement and positioning.

Power Tools: Provide strong power output, improving the cutting, grinding, and drilling efficiency of the tools.

3D Printers: Ensure the precise movement and positioning of the print head, improving the printing accuracy and speed.

Precautions

Safe Operation: Please ensure that all safety operation procedures are followed to avoid electric shock or mechanical injury.

Correct Installation: Please install the motor correctly according to the product manual, ensuring that all connections are firm and reliable to avoid malfunctions caused by looseness.

Maintenance: Regularly check the status of the motor, keep it clean and lubricated to extend its service life and maintain optimal performance.

Power Supply Compatibility: Please ensure that the power supply used is compatible with the motor to avoid damage to the motor caused by too high or too low voltage.

Heat Dissipation Treatment: When operating under high load, please pay attention to the heat dissipation treatment of the motor to avoid performance degradation or damage caused by overheating.

If you are interested in the XTI540-Y sensored brushless motor for 1/10th car model or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
