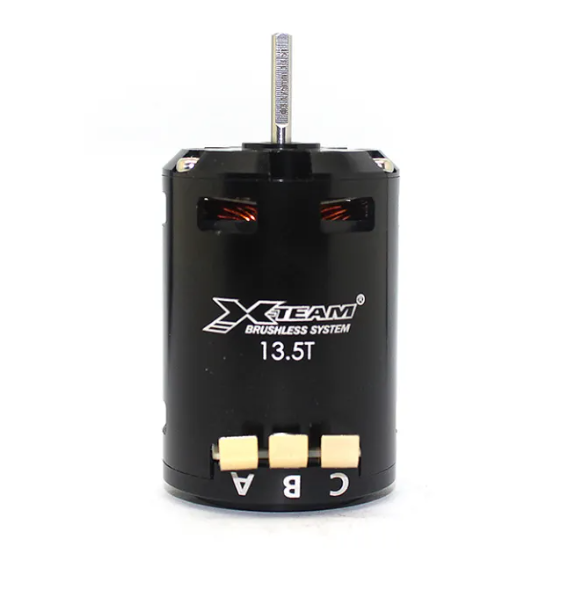

Sensored motors, equipped with position sensors such as Hall sensors or encoders, are widely used in industrial automation, robotics, and CNC equipment due to their high reliability, strong starting torque, and smooth operation. To fully exploit their performance and enhance system stability, optimizing their control parameters is essential. This article explores key methods for optimizing sensored motor control parameters and their practical applications.
Control Characteristics of Sensored Motors
Sensored motors provide real-time rotor position feedback for precise closed-loop control. Key features include:
High-Precision Positioning: Accurate angle control for precise positioning applications.
High Starting Torque: Capable of generating significant torque at low speed, suitable for variable load conditions.
Stable Operation: Closed-loop control minimizes vibration and noise during operation.
Different application scenarios involve varying load characteristics, power conditions, and control strategies, requiring careful optimization of control parameters.
Methods for Optimizing Sensored Motor Control Parameters
Adjusting Current Loop Gain
The current loop gain determines the speed and stability of current response. Low gain causes sluggish torque response, while high gain may lead to oscillations and noise. Proper tuning via testing or simulation achieves rapid and stable motor response.
Optimizing Speed Loop Parameters
The speed loop controls motor velocity, usually using a PI (Proportional-Integral) controller. Optimization includes:
Adjusting the proportional gain (Kp) to improve response speed;
Adjusting the integral gain (Ki) to eliminate steady-state error;
Tuning based on load inertia to prevent overshoot or oscillation.
Position Loop Parameter Optimization
The position loop is the core of sensored motor control. Optimization strategies include:
Setting proportional gain (Kp) for fast positioning;
Using derivative or feedforward compensation for better dynamic response;
Defining dead zones or buffer regions according to load characteristics to reduce vibration and impact.
Motor Parameter Matching and Filtering
Motor parameters such as inductance, resistance, and back-EMF constant must match the controller settings for optimal performance. Proper filter configuration can suppress sensor noise and enhance system stability.
Consideration of Load Characteristics
For applications with variable loads, adjusting loop parameters according to load inertia and friction ensures smooth operation across all working conditions.
Practical Benefits of Optimization
Improved Operational Efficiency
Optimized control parameters result in smoother acceleration, deceleration, and constant-speed operation, reducing energy consumption.
Extended Equipment Life
Reducing vibration and overshoot minimizes mechanical wear, extending the lifespan of motors and connected equipment.
Enhanced Control Accuracy
Optimized closed-loop parameters improve position, speed, and torque precision, meeting the requirements of high-precision automation systems.
Adaptability to Various Applications
Optimized parameters allow motors to perform efficiently under different load conditions and operating environments, improving reliability and versatility.
Conclusion
The performance of a sensored motor heavily depends on the proper configuration of its control parameters. By fine-tuning the current, speed, and position loops while considering motor and load characteristics, engineers can achieve faster response, greater stability, and higher precision. In industrial automation, robotics, and precision machinery, optimizing sensored motor parameters not only enhances device performance but also reduces energy consumption and extends equipment life.
Parameter optimization is a key step toward improving system reliability and efficiency, making it a crucial aspect of modern industrial automation and intelligent manufacturing.
