Description
The XTO-2305 brushless motor is specifically designed for FPV quadcopters. Its hollow structure and efficient cooling design combine to deliver a maximum power of 570W and a maximum current of 39A. Additionally, it supports custom KV values, providing a precise and reliable power core for pilots who seek lightweight response and personalized tuning.
| Parameter | 2300KV | 2600KV | 2750KV |
|---|---|---|---|
| Stator size | Φ23xH5mm | Φ23xH5mm | Φ23xH5mm |
| Motor size | Φ28xH16.5mm | Φ28xH16.5mm | Φ28xH16.5mm |
| Slots/Poles | 12槽14极 | 12槽14极 | 12槽14极 |
| Shaft diameter | Φ4.0mm | Φ4.0mm | Φ4.0mm |
| Internal resistance | 57mΩ | 46mΩ | 38mΩ |
| No-load current | 1.15A | 1.4A | 1.67A |
| Max continuous current | 25A | 29A | 39A |
| Max continuous power | 420W | 487W | 570W |

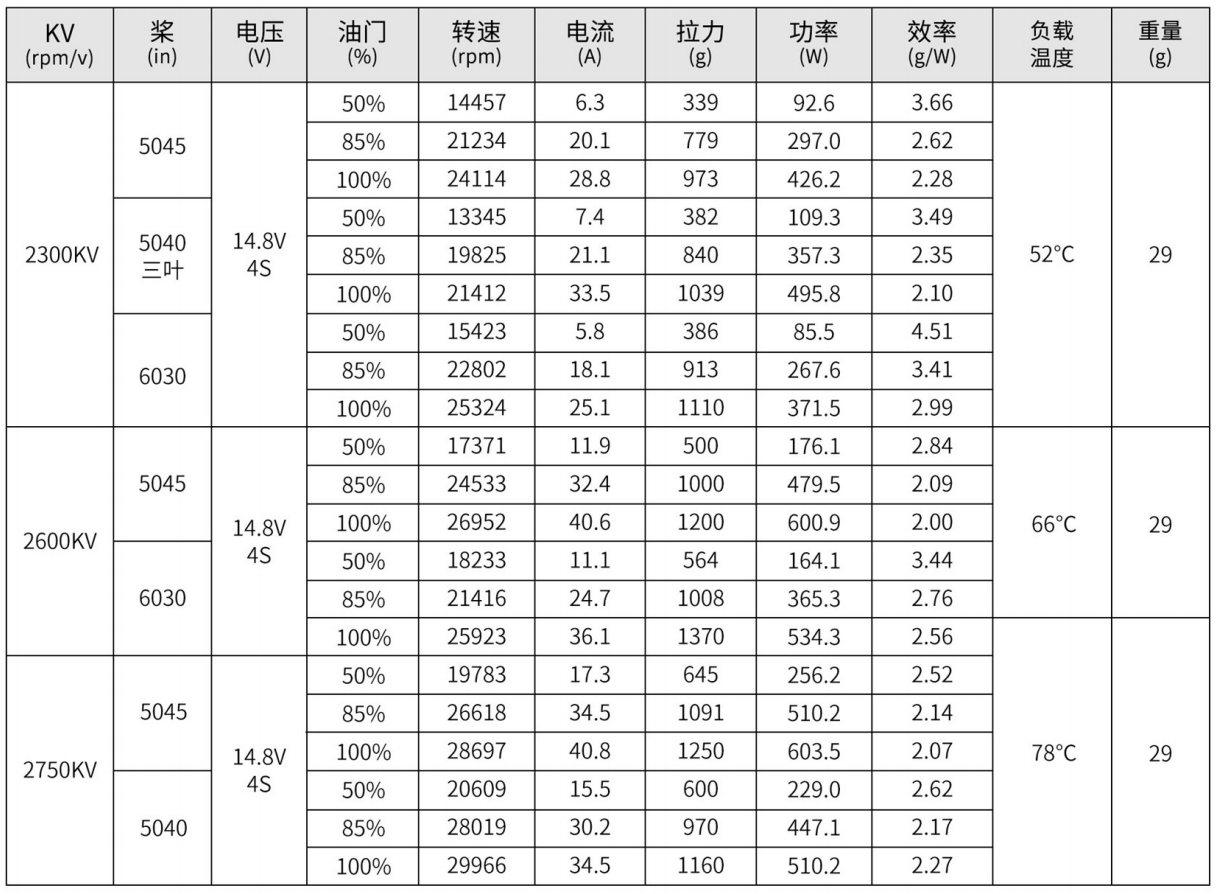

| KV (rpm/V) | Prop (in) | Voltage (V) | Throttle (%) | Speed (rpm) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Load Temp (°C) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2300KV | 5045 | 14.8V 4S | 50% | 14457 | 6.33 | 399 | 92.6 | 3.66 | 52°C | 29 |
| 85% | 21234 | 20.17 | 792 | 297.0 | 2.62 | |||||
| 100% | 24114 | 28.89 | 973 | 426.2 | 2.28 | |||||
| 5040 三叶 | 50% | 13345 | 7.43 | 382 | 109.3 | 3.49 | ||||
| 85% | 19825 | 21.18 | 840 | 357.3 | 2.35 | |||||
| 100% | 21412 | 33.51 | 1039 | 495.8 | 2.10 | |||||
| 6030 | 50% | 15423 | 5.83 | 386 | 85.5 | 4.51 | ||||
| 85% | 22802 | 18.19 | 1326 | 267.6 | 3.41 | |||||
| 100% | 25324 | 25.11 | 1103 | 371.5 | 2.99 | |||||
| 2600KV | 5045 | 14.8V 4S | 50% | 17371 | 11.90 | 500 | 176.1 | 2.84 | 66°C | 29 |
| 85% | 24533 | 32.40 | 1000 | 479.5 | 2.09 | |||||
| 100% | 26952 | 40.60 | 1200 | 600.9 | 2.00 | |||||
| 6030 | 50% | 18233 | 11.10 | 564 | 164.1 | 3.44 | ||||
| 85% | 21416 | 24.70 | 1008 | 365.3 | 2.76 | |||||
| 100% | 25923 | 36.10 | 1370 | 534.3 | 2.56 | |||||
| 2750KV | 5045 | 14.8V 4S | 50% | 19783 | 17.30 | 645 | 256.2 | 2.52 | 78°C | 29 |
| 85% | 26618 | 34.50 | 1091 | 510.2 | 2.14 | |||||
| 100% | 28697 | 40.80 | 1250 | 603.5 | 2.07 | |||||
| 5040 | 50% | 20609 | 15.50 | 600 | 229.0 | 2.62 | ||||
| 85% | 28019 | 30.20 | 970 | 447.1 | 2.17 | |||||
| 100% | 29966 | 34.50 | 1160 | 510.2 | 2.27 |
