Name: XTO-2205 FPV drone brushless motor
Availability: InStock

Description

The XTO-2205 brushless motor is specifically designed for FPV quadcopters, featuring a hollow-out structure and efficient cooling design. With a maximum power of 755W and a weight of only 31g, it supports custom KV values, providing a precise and reliable power core for pilots who pursue lightweight response and personalized tuning.

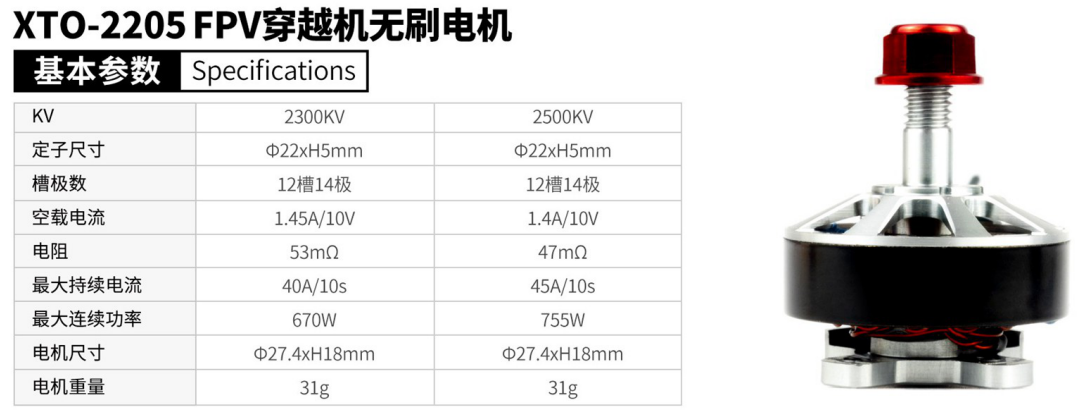

Parameter	2300KV	2500KV
KV	2300KV	2500KV
Stator size	Φ22xH5mm	Φ22xH5mm
Slots/Poles	12N14P	12N14P
No-load current	1.45A/10V	1.4A/10V
Resistance	53mΩ	47mΩ
Max continuous current	40A/10s	45A/10s
Max continuous power	670W	755W
Motor size	Φ27.4xH18mm	Φ27.4xH18mm
Motor weight	31g	31g

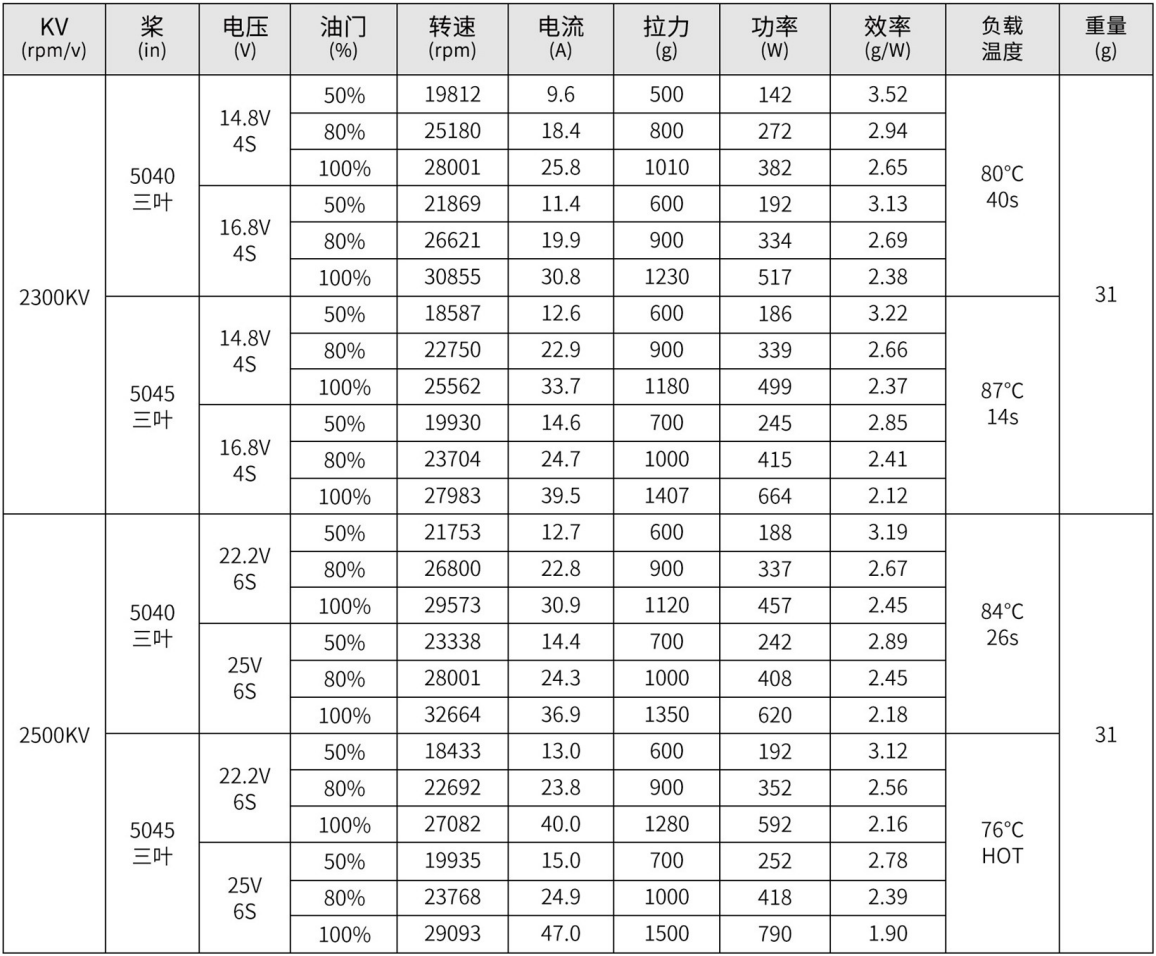

KV (rpm/V)	Prop (in)	Voltage (V)	Throttle (%)	Speed (rpm)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)
2300KV	5040	14.8V 4S	50%	19812	9.6	500	142	3.52
		14.8V 4S	80%	25180	18.4	800	272	2.94
		14.8V 4S	100%	28001	25.8	1010	382	2.65
		16.8V 4S	50%	21869	11.4	600	192	3.13
		16.8V 4S	80%	26621	19.9	900	334	2.69
		16.8V 4S	100%	30855	30.8	1230	517	2.38
	5045	14.8V 4S	50%	18587	12.6	600	186	3.22
		14.8V 4S	80%	22750	22.9	900	339	2.66
		14.8V 4S	100%	25562	33.7	1180	499	2.37
		16.8V 4S	50%	19930	14.6	700	245	2.85
		16.8V 4S	80%	23704	24.7	1000	415	2.41
		16.8V 4S	100%	27983	39.5	1407	664	2.12
	5040	22.2V 6S	50%	21753	12.7	600	188	3.19
		22.2V 6S	80%	26800	22.8	900	337	2.67
		22.2V 6S	100%	29573	30.9	1120	457	2.45
		25V 6S	50%	23338	14.4	700	242	2.89
		25V 6S	80%	28001	24.3	1000	408	2.45
		25V 6S	100%	32664	36.9	1350	620	2.18
2500KV	5045	22.2V 6S	50%	18433	13.0	600	192	3.12
		22.2V 6S	80%	22692	23.8	900	352	2.56
		22.2V 6S	100%	27082	40.0	1280	592	2.16
		25V 6S	50%	19935	15.0	700	252	2.78
		25V 6S	80%	23768	24.9	1000	418	2.39
		25V 6S	100%	29093	47.0	1500	790	1.90
