Designing the stator and rotor for a brushless motor involves various considerations that affect performance, efficiency, and overall functionality. Here are some key aspects:

640

Stator Design:(X-team BLDC MOTORS)

Stator Core:

  • Materials: Silicon steel laminations are commonly used for the stator core due to their high magnetic permeability and low eddy current losses.
  • Construction: Winding slots are designed on the stator core to hold the coils.
  • Slot Shape and Size: Optimal slot shape and size are crucial for accommodating the winding coils and maximizing the magnetic flux in the motor.
1681902191813
brushless motor for an electric motorcycle

Winding Configuration:

  • Phase Configuration: Determining the number of phases (e.g., 3-phase, 6-phase) affects the motor’s performance and torque characteristics.
  • Winding Type: Concentrated windings (single coil per tooth) or distributed windings (multiple coils per tooth) affect motor performance and heat dissipation.

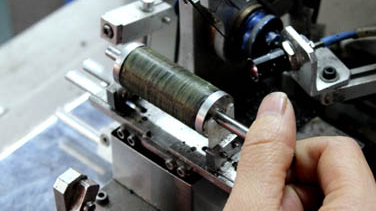

3.22 3

Coil Design:

  • Wire Material and Size: Selection of copper wire gauge and insulation material influences motor efficiency and current-carrying capacity.
  • Winding Patterns: The arrangement and pattern of the winding in the stator slots can impact motor efficiency and performance.

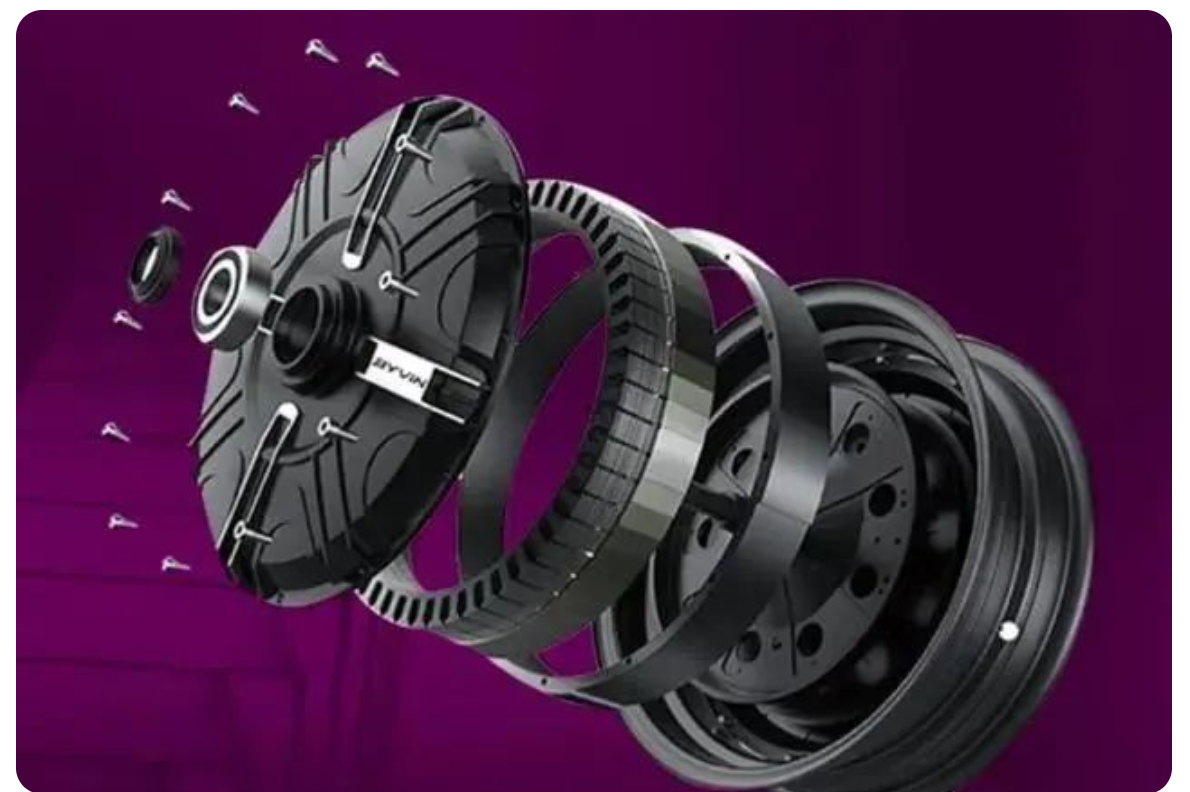

20230223120727

Rotor Design:

Magnet Configuration:

  • Permanent Magnet Type: Neodymium magnets are often used due to their high magnetic strength.
  • Pole Pairing: Determining the number and placement of magnetic poles influences motor speed and torque.
  • Magnet Shape and Arrangement: Different magnet shapes (arc, rectangular, etc.) and their arrangements affect motor performance.

Rotor Core:

  • Materials: Magnetic steel is commonly used for the rotor core due to its high magnetic permeability.
  • Construction: The rotor core houses the magnets and influences the magnetic circuit in the motor.

Balancing and Assembly:

  • Balancing: Precision balancing of the rotor is critical to reduce vibration and enhance motor efficiency.
  • Assembly: Accurate assembly of the rotor with the stator is necessary for optimal motor operation.

Other Considerations:

  • Heat Dissipation: Efficient thermal management in the design is vital to prevent overheating and ensure motor longevity.
  • Electromagnetic Interference (EMI) Control: Shielding and design considerations to minimize electromagnetic interference.
  • Manufacturability: Design for ease of manufacturing and cost-effectiveness is important.

The design of brushless motors is a complex process that involves a combination of electromagnetic, mechanical, and thermal factors. Computer-aided design (CAD) software and simulation tools are commonly used to model and optimize the motor’s performance before physical prototyping and manufacturing.
